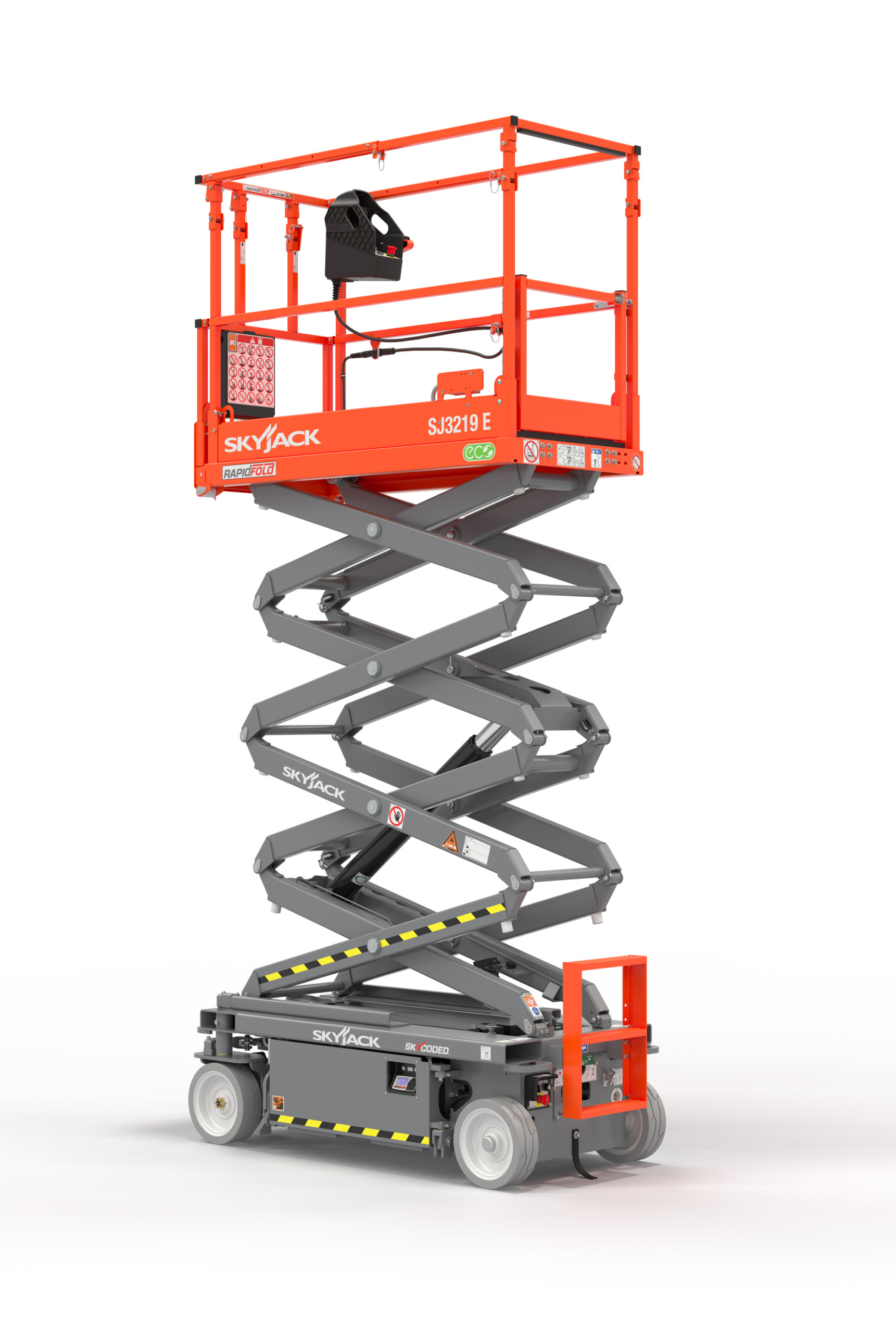

Skyjack SJ3219 Electric Scissor Lift – 7.65m Max Working Height
SALE PACKAGE!
SJ3219 + PT20 Trailer (See Specs)
Enquire Now – Simply fill out the request for a quote below!
Key Specs
- Max Working Height: 7.65 m / 25 ft
- Max Platform Capacity: 227 kg | 500 lb
| Specifications | |
| Max Working Height | 7.65 m |
| Max Platform Height | 5.65 m |
| Overall Length | 1.80 m |
| Overall Width | 0.81 m |
| Stowed Height | 1.99 m |
| Extension length | 0.84 m |
| Platform Capacity | 227 kg |
| Weight | 1476 kg |
| Ground Clearance | 89 mm |
Standard Features
■ Drivable at full height
■ Variable speed, front wheel hydraulic drive
■ Dual holding brakes
■ SKYCODED™ Colour coded and numbered wiring system
■ On-board visual interface with diagnostic capabilities
■ Shroud style, impact resistant composite control box with
extended cable
■ Proportional controls for drive & lift functions
■ Tilt sensor (3.5° x 1.5°)
■ 0.91 m Roll out extension deck
■ 24V DC Power source
■ Low voltage battery protection
■ 25% Gradeability
■ Solid rubber, non-marking tyres
■ Pothole protection system
■ Wiring for AC outlet at platform
■ Tilt alarm with drive & lift cut-out
■ All motion audible alarm
■ Lanyard attachment points
■ Operator horn
■ Forklift pockets and tie down / lift lugs
■ Overload sensing system
■ Solid railings
■ Half height spring hinged entry gate
■ Telematics ready
■ White noise alarm
■ Flashing light
